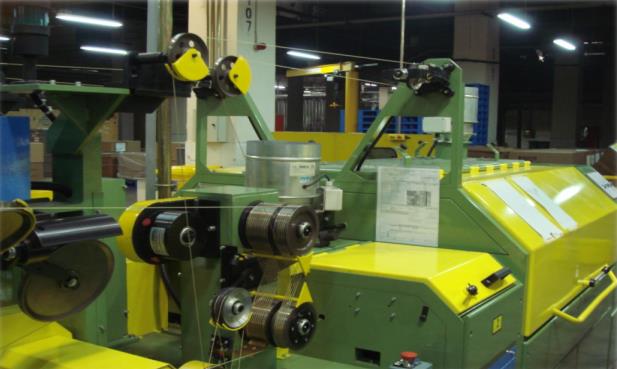

CDT410W雙捻機

　　CDT410W雙捻機（帶外繞頭）   CDT410W Double Twister

　　簡要介紹  Briefly introduces

　　CDT410W 型雙捻機是用來生產(chǎn)結構為3＋9×0.22＋0.15成品鋼簾線的專用設備，可用B40、B60、B80工字輪收線。

　　設備帶有外繞頭，可使鋼簾線一次加工成形。（外繞頭速度可達15500轉/分），芯線搖籃可水平放置。

　　3個188工字輪，其中，在搖籃豎板的一邊放1個工字輪和1個配重，另一邊放2個工字輪，面線搖籃可水平放置9個188工字輪，其中，在搖籃豎板的一邊放4個工字輪和1個配重，另一邊放5個工字輪。在芯線飛輪傳動和面線飛輪傳動之間，采用同步帶傳動連接，使兩飛輪轉速比始終保持恒定。

　　CDT410W Double Twister is a special equipment for finished steel cord with the structure of  3＋9×0.22＋0.15 production.It can be taken up by B40、B60、B80 spool.The equipment with braider can shape and process steel cord  for once.(speed of braider can be up to 15500 rpm )

　　3 spools 188 ,are placed horizontally in cored wire cradle.One side is a spool and a counterweight,the other are 2 spools.

　　9 spools 188 ,are placed horizontally in facial wire cradle.One side are 4 spools and a counterweight,the other are 5 spools. Between cored wire spool and facial wire spool transmission,the speed of spools always keep constant with the connection of synchronous belt.



　　技術參數(shù)：
